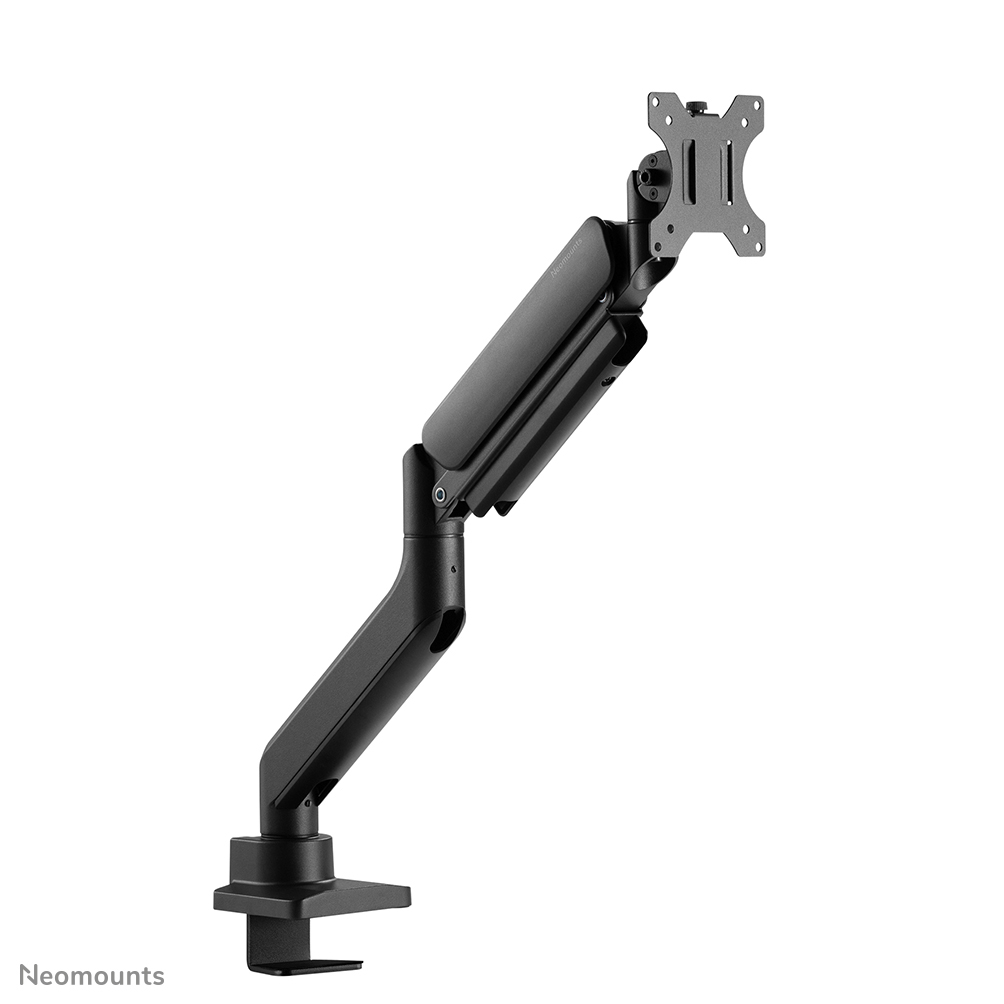

Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop

Neomounts NEXT Core DS70-450BL1 Single monitor arm - 17-42" - 1-15 kg (curved 11 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

Colours:

Variants:

Compare

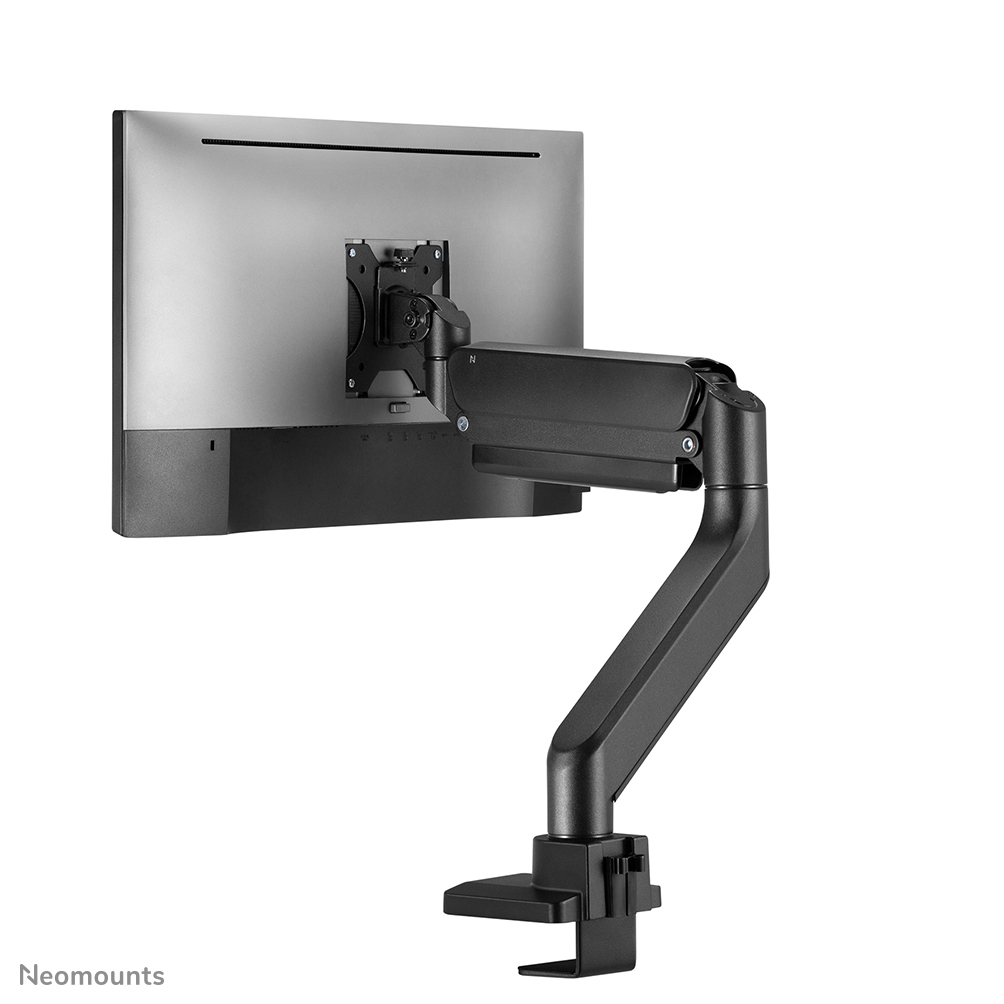

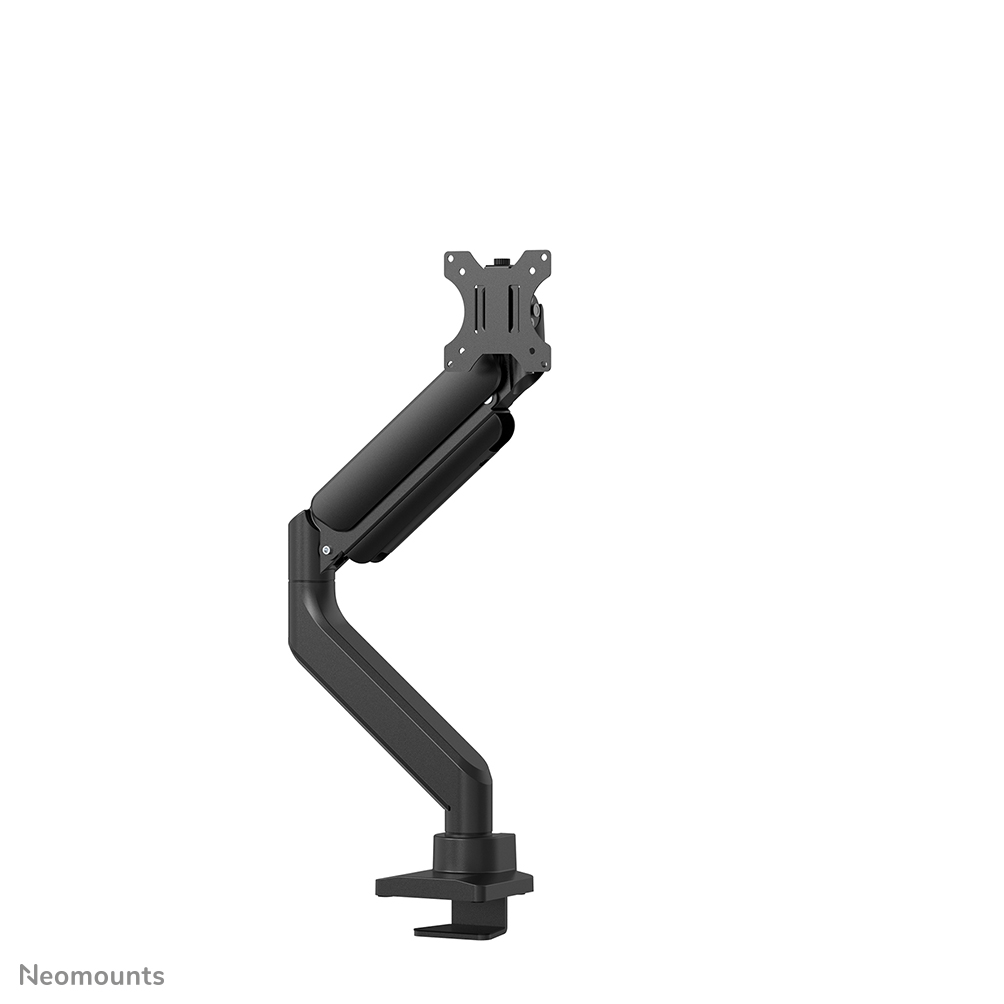

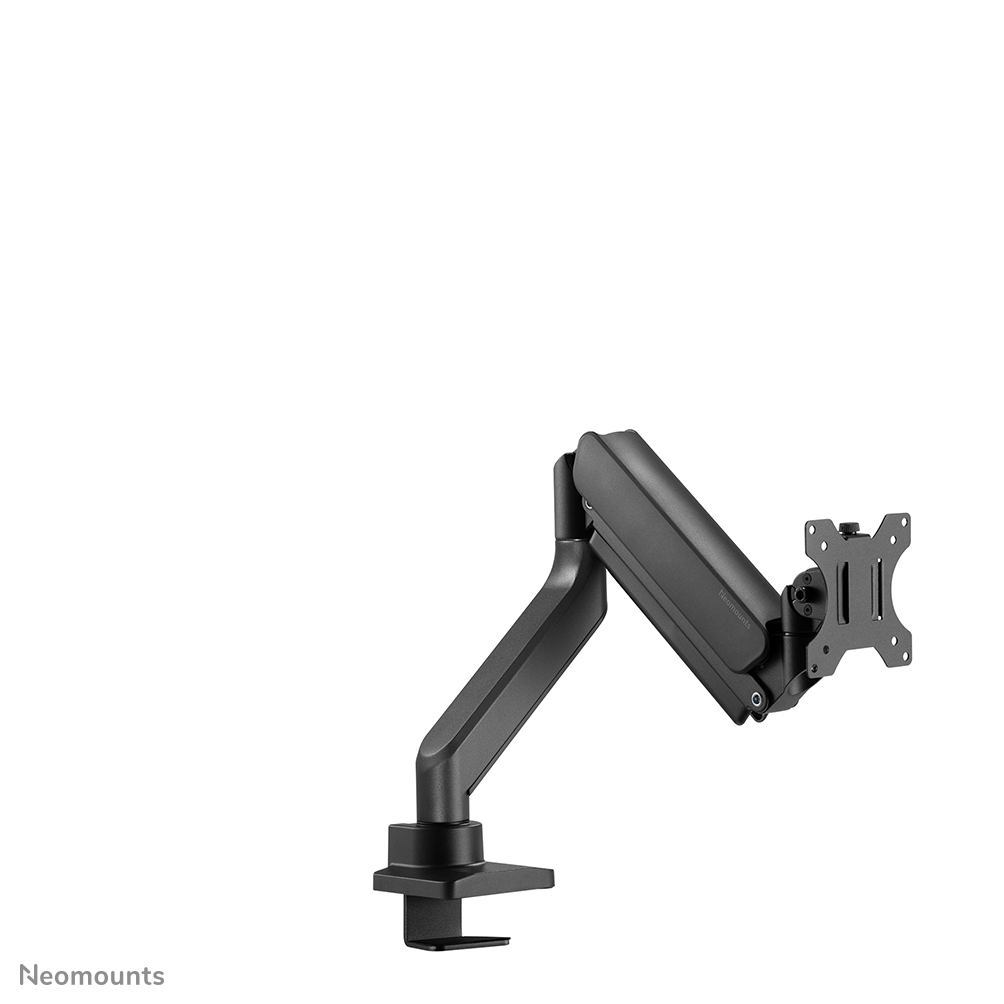

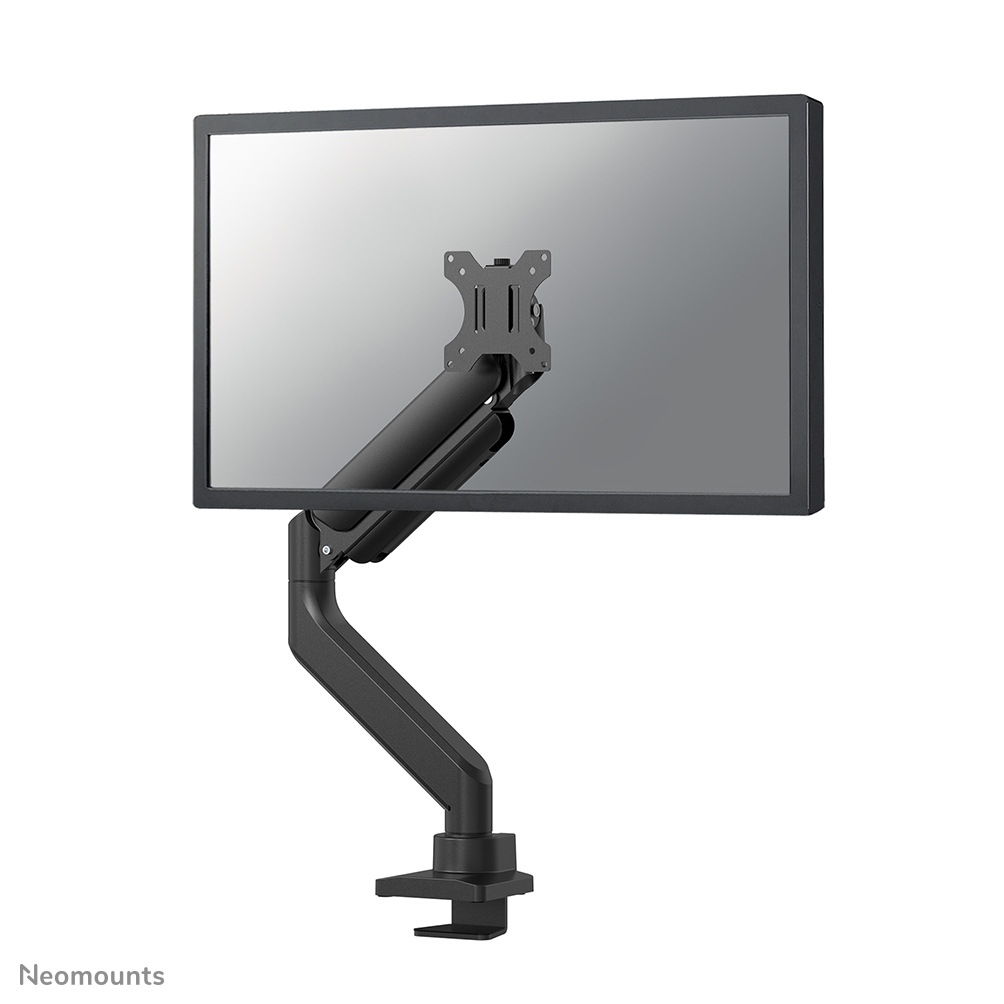

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables. The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation. The inner packaging of the NEXT Core is plastic free and made from cardboard and paper. For wall installation, the AWL75-450BL wall adapter is optionally available.

Specifications

General

Min. screen size*:

17 inch

Max. screen size*:

42 inch

Min. weight:

1 kg

Max. weight:

15 kg

Max. weight curved/ultra-wide:

11 kg

Screens:

1

VESA pattern:

75x75, 100x100 mm

VESA minimum:

75x75 mm

VESA maximum:

100x100 mm

Desk mount:

Grommet, Clamp

Distance to wall:

10,8-56,8 cm

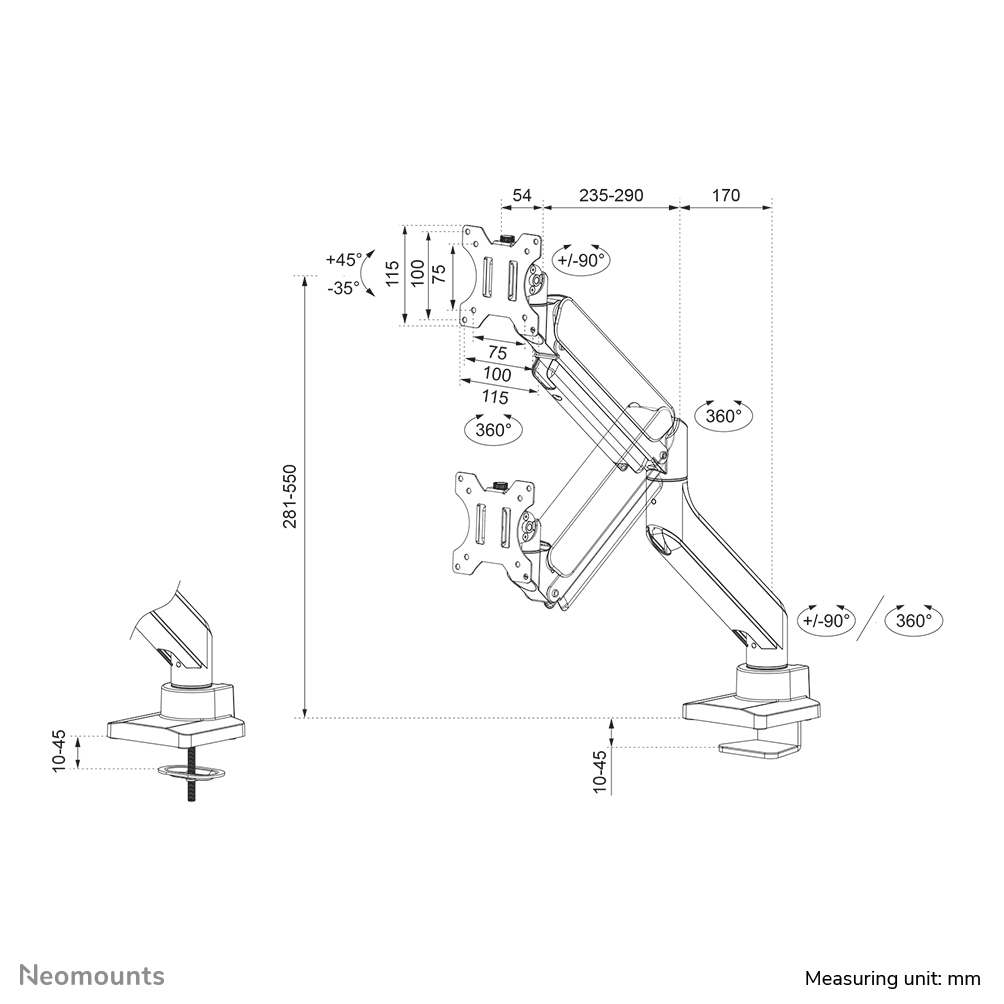

Functionality

Type:

Full motion

Height adjustment:

26,1-55,5 cm

Width adjustment:

92 cm

Depth adjustment:

5,4-51,1 cm

Tilt (degrees):

+45°, -45°

Swivel (degrees):

+90°, -90°

Rotate (degrees):

+180°, -180°

Height:

65,3 cm

Width:

12 cm

Depth:

56,8 cm

Adjustment type:

Gas spring

Information

Article number:

DS70-450BL1

EAN:

8717371449469

Series:

NEXT Core

Color:

Black

Main material:

Steel

Warranty:

5 year

*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.

17- 42 inch

1 - 15 kg

75x75 - 100x100 mm

26,1-55,5 cm

5,4-51,1 cm

10,8-56,8 cm

+45°, -45°

+90°, -90°

+180°, -180°

5 year

Product information

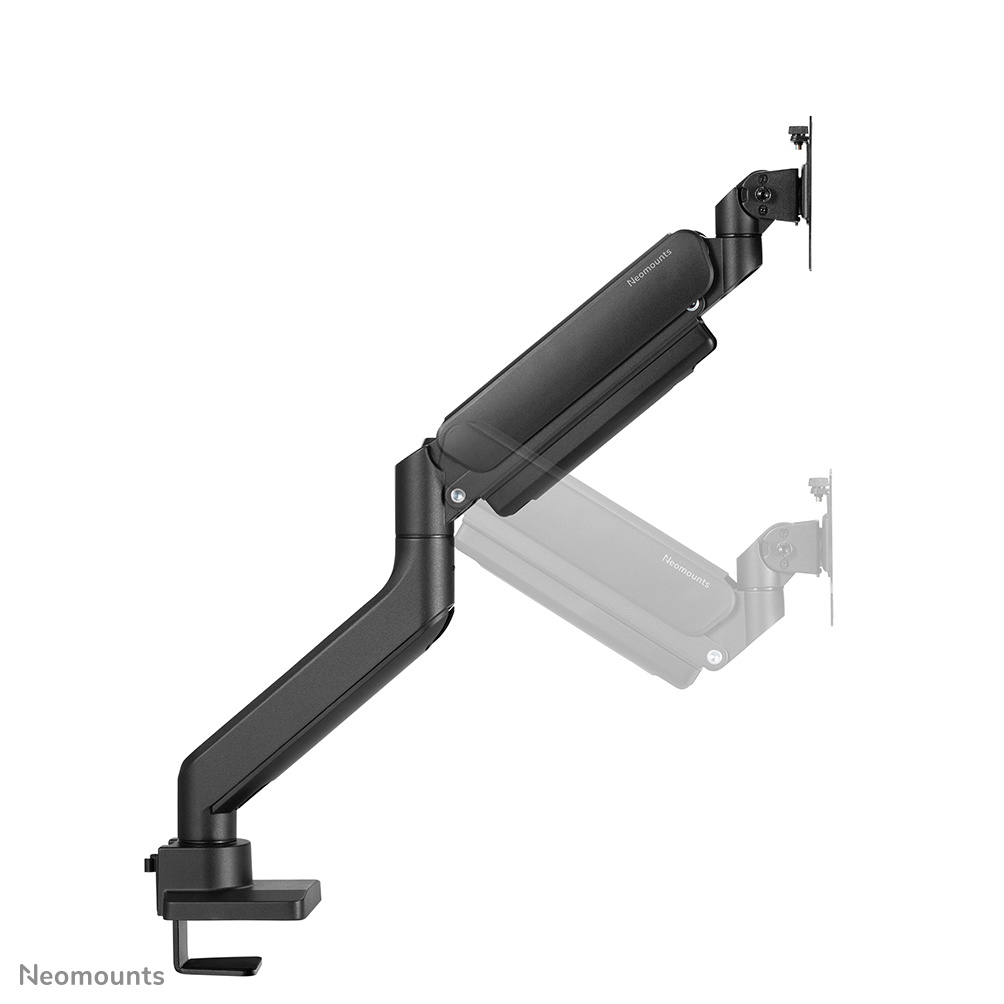

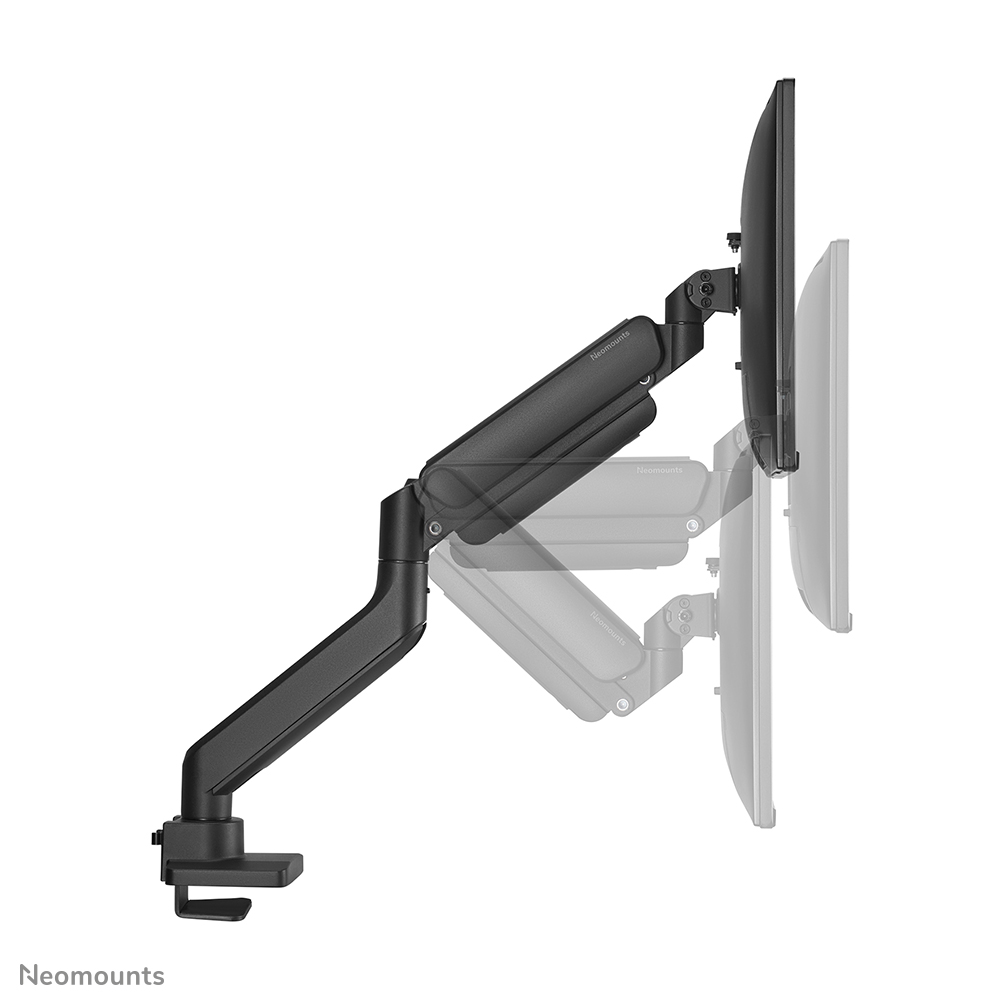

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

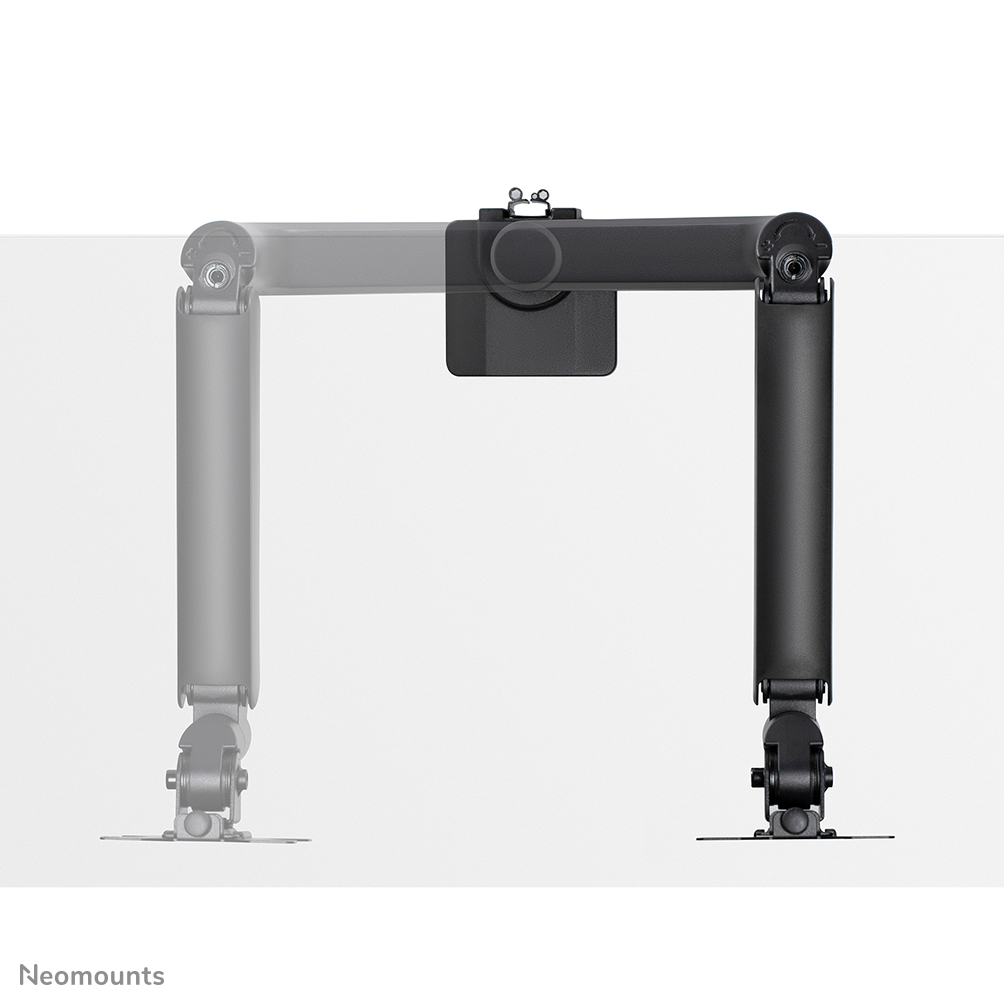

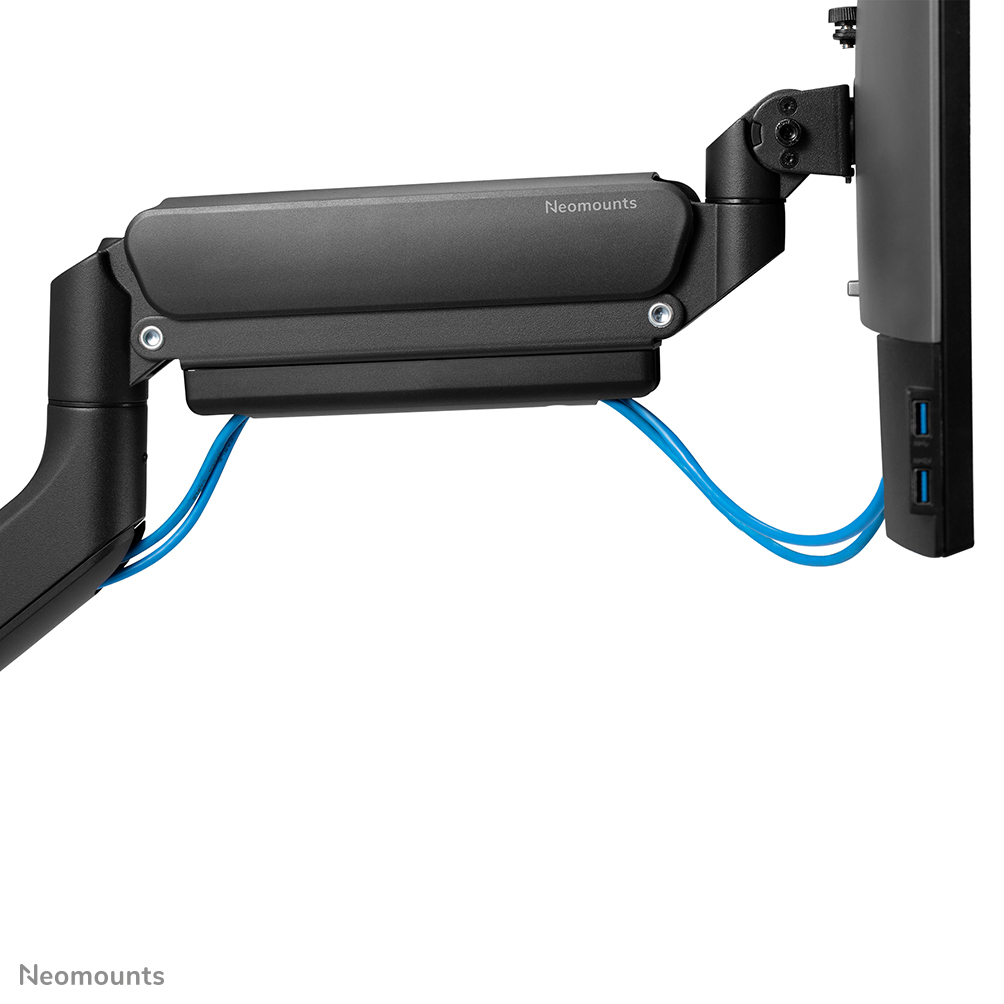

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

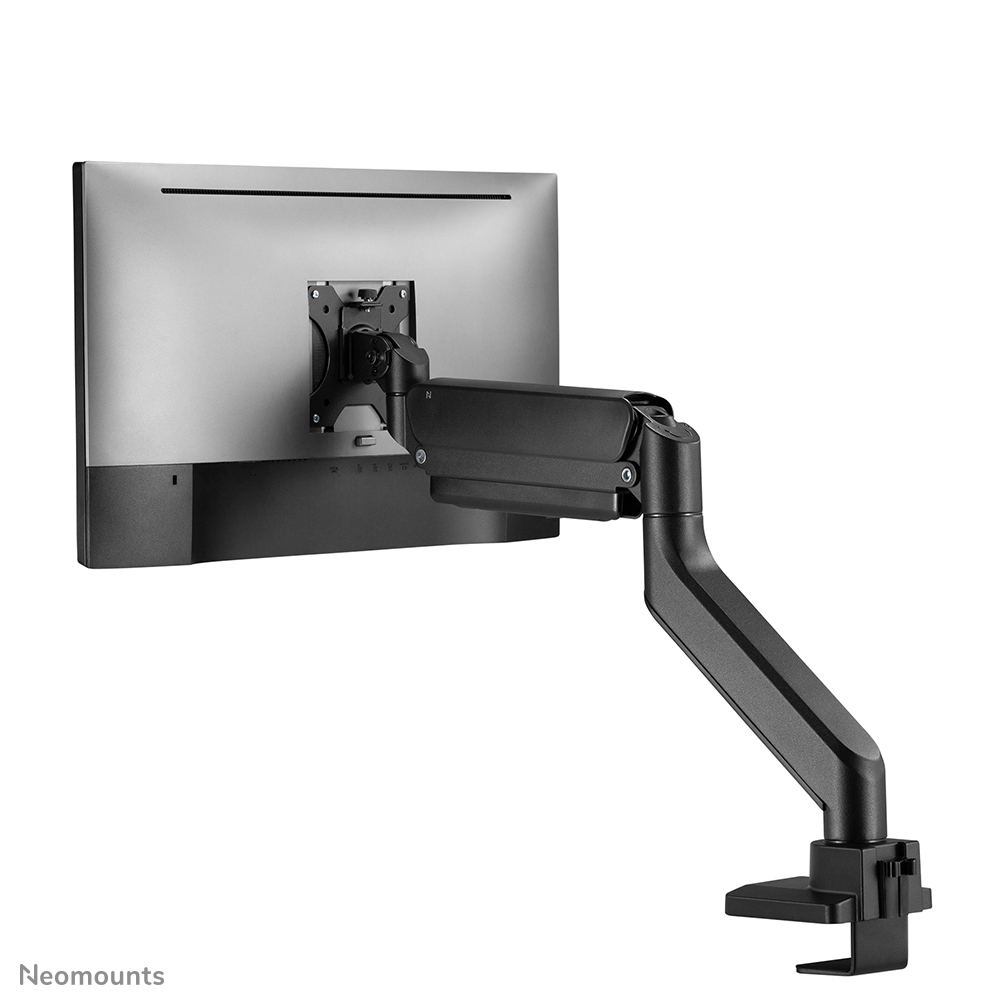

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

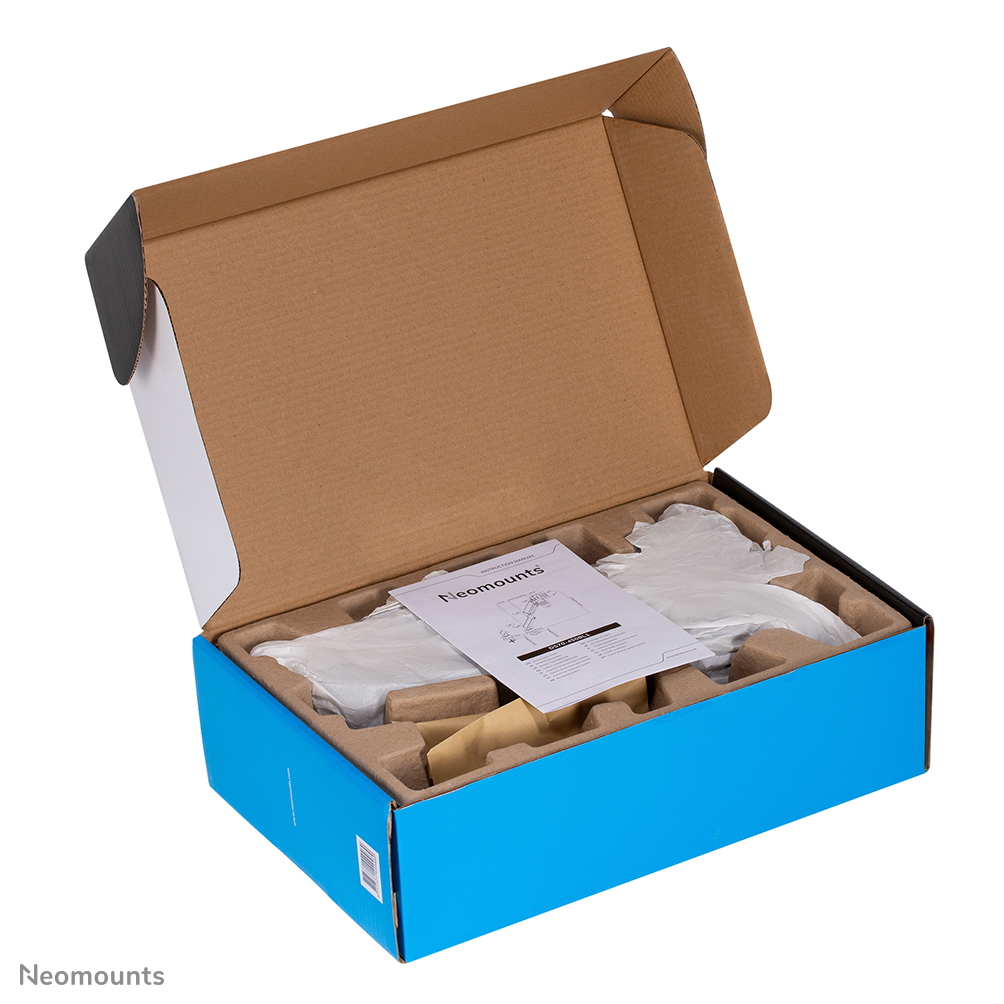

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.

Product documentation

Download the available product documentation here. In case of any further questions please do not hesitate to contact our service & support desk by email: info@neomounts.com.
